Caractéristiques:
- Allows simultaneous sampling across multiple ATS9626 waveform digitizers
- Four coherent clock outputs
- Four synchronous trigger outputs
- Trigger holdoff function for safe synchronous arming of multiple boards
- USB 2.0 controlled
- C++ sample program for use with ATS-SDK for user programmability

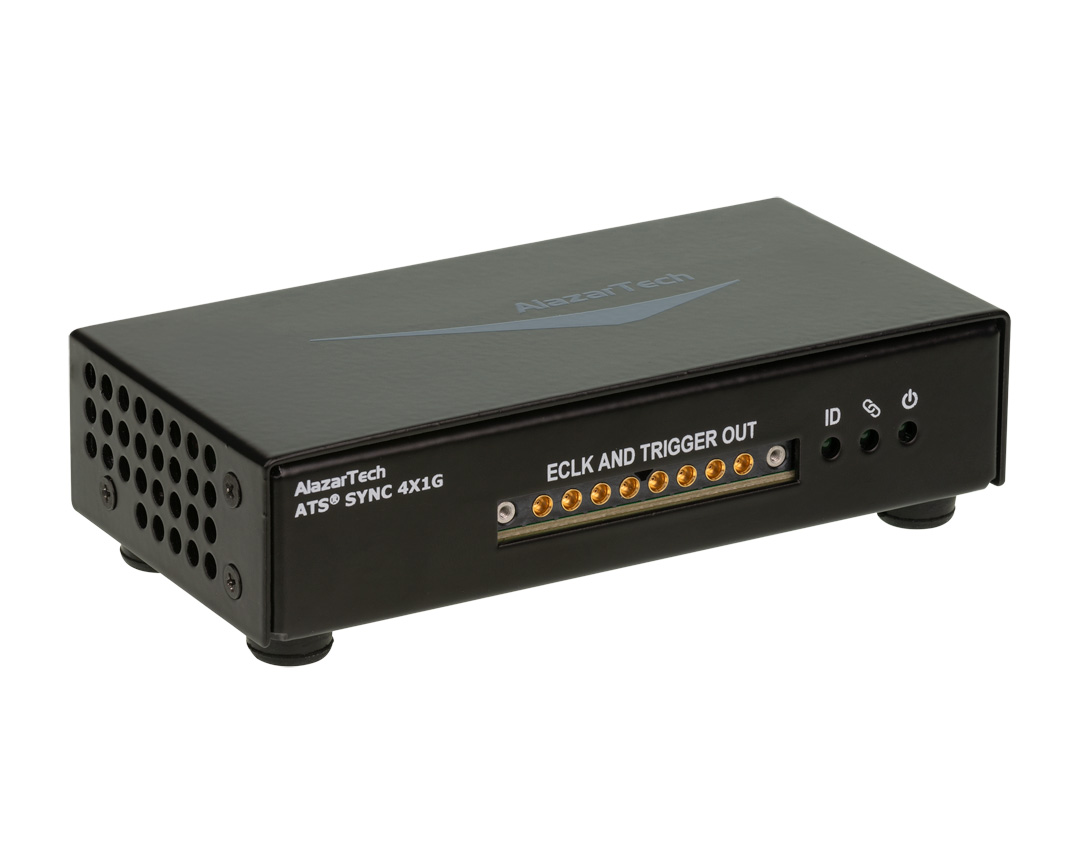

ATS9626: Sync 4X1G
ATS9626: Sync 4X1G permet un échantillonnage simultané sur jusqu'à quatre (4) numériseurs AlazarTech ATS9626 indépendants en fournissant des signaux d'horloge et de déclenchement communs à chaque numériseur.
Accessoires et logiciels optionnels
Options et garanties prolongées
Documentation
-
Fiche technique ATS Sync 4X1GVersion: 1.0B
- Garantie
Logiciel
-
Application et pilote ATS SyncVersion: 1.0.1Notes de version
Change Log
All notable changes to `ATSsync` are documented here.
[1.0.1] - 2024-5-14
Fixed
- Issue where ATSsync driver would not install properly on Windows 11.
Changed
- Replace Syncbox name with ATSsync to match product name.
Added
[1.0.0] - 2024-1-25
Added
- Add support for SyncBoard 6X and 4X.
- Return error if unsupported frequency.
- Python sample program and wrappers for library functions.
Fixed
- Fix Windows driver installation.
- Activate link LED on ATSsync when USB is connected.
[0.3.2] - 2023-7-18
- No user-visible change
[0.3.1] - 2023-6-14
- No user-visible change
[0.3.0] - 2023-2-20
Fixed
- Sync board external clocking.
[0.2.0] - 2022-6-16
- No user-visible change
[0.1.0] - 2022-6-10
Added
- Initial version
