- Enables up to 4 channels of data acquisition
- Complete synchronization between Master board and all Slave boards
- SyncBoard 330 copies all clock and trigger signals and supplies them to all connected Slave boards
- Allows the use of variable frequency clocks
ATS330: CarteSync 2x

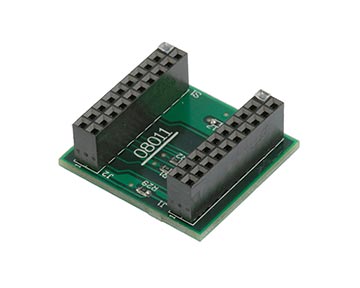

If your application requires more than 2 channels for data acquisition, you can synchronize multiple digitizers to allow truly synchronous sampling using a Master/Slave SyncBoard 330. SyncBoard 330 is a mezzanine board that connects to the Master/Slave connector along the top edge of the ATS330 and sits parallel to the motherboard.
SyncBoard 330 2x allows a 2-board Master/Slave system for 4 channels of data acquisition.
SyncBoard 330 features controlled impedance, and equal length traces to deliver clock, trigger, and initialization signals to each ATS330 in the system.
Synchronize up to four ATS330 boards for up to 8 channels of data acquisition using the SyncBoard 330 4x.
"Complete synchronization between Master board and all Slave boards
The Master board's clock and trigger signals are copied by the SyncBoard 330 and supplied to all the Slave boards. This guarantees complete synchronization between the Master board and all Slave boards. SyncBoard 330 allows the use of variable frequency clocks in Master/Slave configuration. A Master/Slave system samples all inputs simultaneously and also triggers simultaneously on the same clock edge.
For optimal trigger accuracy, only the Master board is allowed to trigger the acquisition system.
