ATS-GPU-BASE

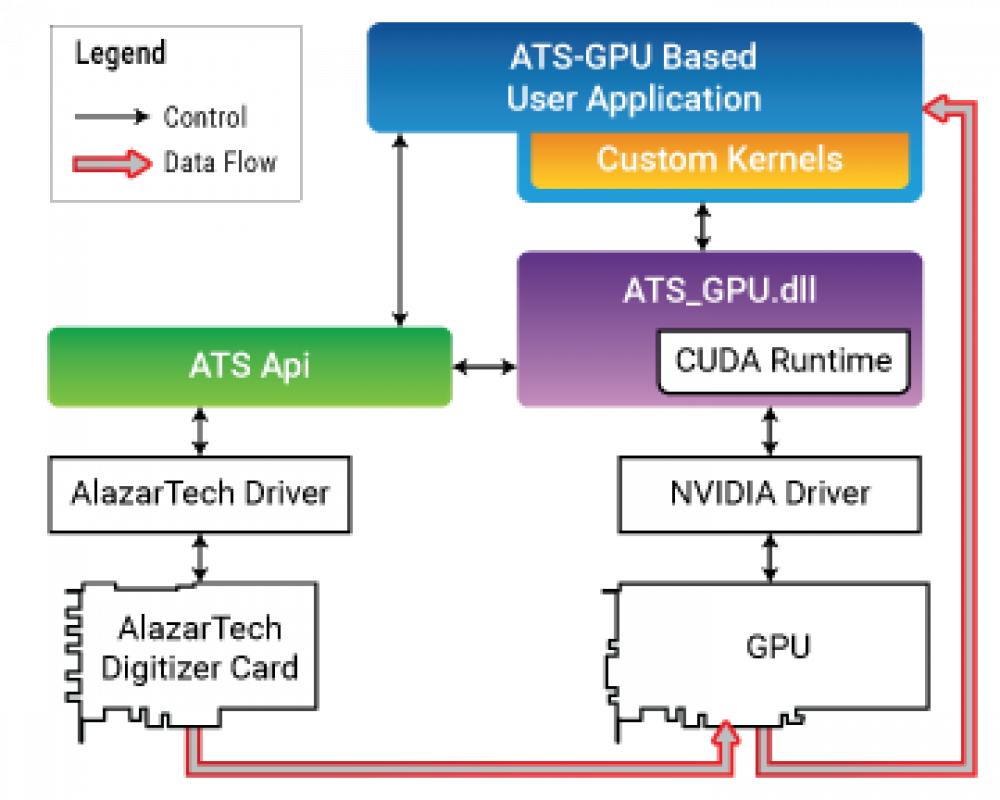

ATS-GPU-BASE 4.0 is a software library developed by AlazarTech that transfers data acquired by its family of PCI Express waveform digitizers to a CUDA-enabled Graphical Processing unit (GPU) at sustained transfer rates as high as 6.9 GB/s. Data is presented in GPU memory as a buffer queue. Expert-level GPU programmers can create very high performance custom kernels to manipulate this data using an easy-to-use application programming interface (API).

One example of such high performance kernel is the optional ATS-GPU-OCT library (sold separately), which acquires data using ATS-GPU-BASE and then implements full OCT signal processing algorithm using CUDA kernels. ATS-GPU-OCT was benchmarked at up to 950,000 4K FFTs per second, demonstrating the power and efficiency of the ATS-GPU-BASE platform.

The number of possible applications of ATS-GPU-BASE is limitless. In fact, it is limited only by application requirements and the imagination of the programmer.

The purchase of an ATS-GPU-BASE license automatically allows customers to download updates from the AlazarTech website for a period of 12 months from the date of purchase.  Customers who want to download new releases beyond the included 12 month period must purchase ATS-GPU-BASE Extended Maintenance.

Create custom kernels for signal processing

ATS-GPU-BASE includes an example program that demonstrates how to use the ATS-GPU-BASE library to transfer data from a waveform digitizer to a GPU, how to do simple data processing on the GPU, and how to transfer the processed data to host memory (RAM) using CUDA kernels. Expert-level GPU programmers can use this example program as a starting point to create their own kernels to do GPU-based DSP.
