- Enables up to 4 channels of data acquisition
- Complete synchronization between Leader board and all Follower boards
- SyncBoard 9351 copies all clock and trigger signals and supplies them to all connected Follower boards
- Allows the use of variable frequency clocks
ATS9351: SyncBoard 2x-W

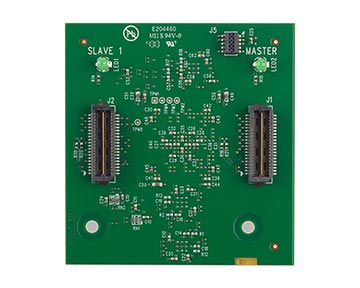

If your application requires more than two channels for data acquisition, you can synchronize multiple digitizers on all platforms using a Leader/Follower SyncBoard 9351. SyncBoard 9351 is a mezzanine board that connects to the Leader/Follower connector along the top edge of the ATS9351 and sits parallel to the motherboard.
SyncBoard 9351 2x-W allows a 2-board Leader/Follower system with 2-slot spacing for 4 channels of data acquisition.
Synchronize up to four ATS9351 boards for up to 8 channels of data acquisition using the appropriate SyncBoard 9351.
Complete synchronization between Leader board and all Follower boards
The Leader board’s clock and trigger signals are copied by the SyncBoard 9351 and supplied to all the Follower boards. This guarantees complete synchronization between the Leader board and all Follower boards. SyncBoard 9351 allows the use of variable frequency clocks in Leader/Follower configuration. A Leader/Follower system samples all inputs simultaneously and also triggers simultaneously on the same clock edge.
For optimal trigger accuracy, only the Leader board is allowed to trigger the acquisition system.
