- Enables up to 4 channels of data acquisition
- Complete synchronization between Leader board and all Follower boards
- SyncBoard 9350 copies all clock and trigger signals and supplies them to all connected Follower boards
- Allows the use of variable frequency clocks
ATS9350: SyncBoard 2x

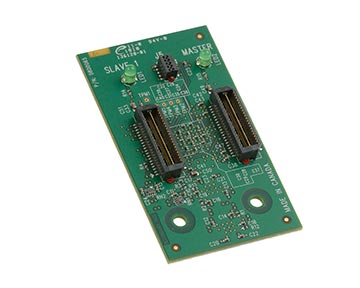

If your application requires more than 2 channels for data acquisition, you can synchronize multiple digitizers on all platforms using a Leader/Follower SyncBoard 9350. SyncBoard 9350 is a mezzanine board that connects to the Leader/Follower connector along the top edge of the ATS9350 and sits parallel to the motherboard.
SyncBoard 9350 2x allows a 2-board Leader/Follower system with single-slot spacing for 4 channels of data acquisition. If you require 2-slot spacing between ATS9350 cards to support a motherboard that spaces out the on-board x8 or x16 slots by two slots, use the SyncBoard 9350 2x-W.
Synchronize up to four ATS9350 boards for up to 8 channels of data acquisition using the appropriate SyncBoard 9350.
Complete synchronization between Leader board and all Follower boards
The Leader board’s clock and trigger signals are copied by the SyncBoard 9350 and supplied to all the Follower boards. This guarantees complete synchronization between the Leader board and all Follower boards. SyncBoard 9350 allows the use of variable frequency clocks in Leader/Follower configuration. A Leader/Follower system samples all inputs simultaneously and also triggers simultaneously on the same clock edge.
For optimal trigger accuracy, only the Leader board is allowed to trigger the acquisition system.
